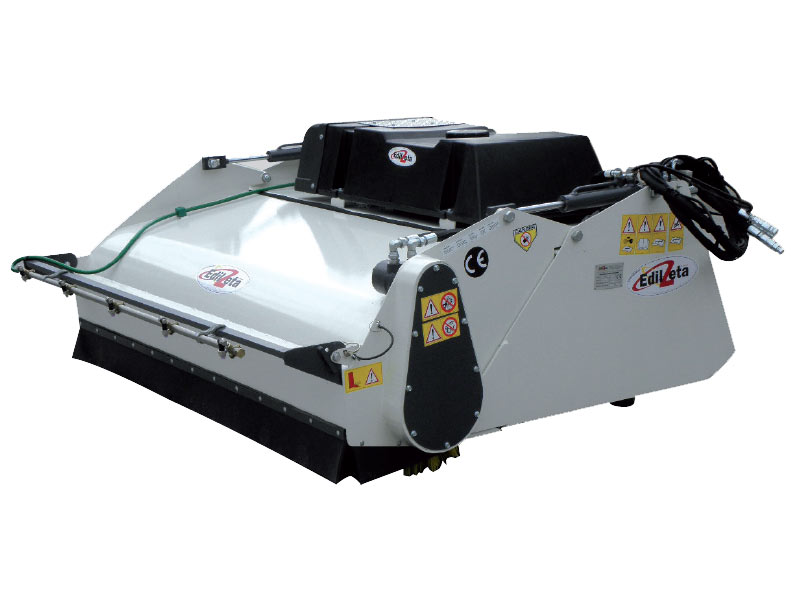

Edilzeta Multi-Purpose Bucket Sweeper
BSA HIDRO 150
Edilzeta BSA bucket sweepers are highly indicated for:
- Cleaning of road construction sites.
- Cleaning of asphalt milling.
- Cleaning of gravel etc. spread on the road by the tires of machines working on construction sites.
- Appreciated by renters to meet the various demands of their customers.
SPECIFICATIONS
Working Width
1500 mm
Overall Width
1630x1650x700 mm
Mass
440 kg
Brush Diameter
500 mm
Brush Material
Polypropylene
Brush Type
Spiral
Maximum Pressure
180 bar
Bucket Capacity
500 l
Max. Load
1190 kg
SPECIAL FEATURES
The special features of this multi-purpose, revolutionary bucket are:
- The possibility to use only a bucket to collect the bulk of the material by lifting the brush hydraulically. This system allows us to use a single machine as there is no need to release the sweeper to attach the loading bucket.
- During the unloading phase of the collected material, the brush does not interfere because it can be raised hydraulically.
- Both the bucket and the brush can be cleaned quickly, as they are easily accessible. Maintenance operations are quick and easy to perform as well.
STANDARD EQUIPMENT
Hydraulic opening of the bucket by means of a simple effect piston.
Single polypropylene spiral brush.
Chain drive with 40mm diameter shafts.
Adjusting of the brush by means of bolts placed on the cylinder used to open the bucket cover.
OPTIONAL ACCESSORIES
500 mm side brush kit complete with pipes.
Watering kit with electric pump, 80 liters capacity tank and nozzles mounted on a retractable bar.
Bolt-on blade.
Bolt-on hitch for construction machinery.
