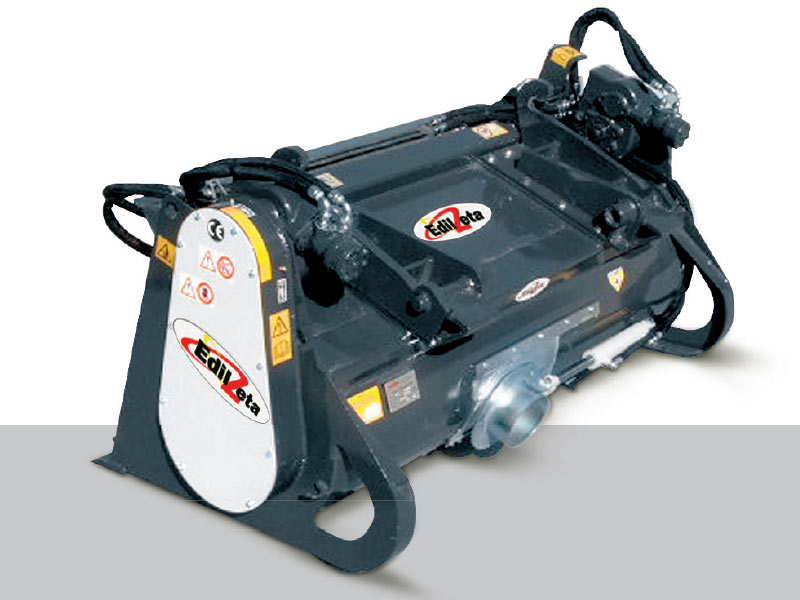

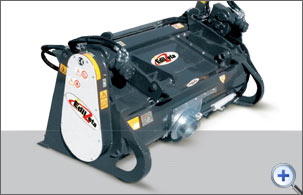

Edilzeta Mixing Bucket
in Hardox - BE PR 600

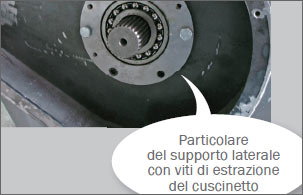

Edilzeta mixing buckets can be attached to a variety of road works and construction machinery in order to load, mix and unload concrete anywhere in a short time and in any quantity needed. These buckets have been designed to facilitate maintenance and reduce downtime, as this is economically damaging for companies operating in construction. The buckets can be disassembled easily and every part can be adjusted thanks to the easy access.
Hydrostatic + 2 Final Drive + Chain
Working Width
1650 mm
Overall Width
1850 mm
Concrete Yield Capacity
600 l.
Nominal Capacity
700 l.
Total Empty Mass*
730 kg
Max. Load
2170 kg
Minimum Oil Flow
80 l./min.
* Empty mass: machine without attachments.
Edilzeta mixing buckets are characterized by the use of double reduction sets. The first system is based on oil bath reducers and the second is a chain with rollers, thus allowing hydraulic motors to operate in a range of rpm as close to the maximum efficiency as possible, not needing to use high displacement engines and so reducing machine's pump strain.
- Discharge with flexible rubber hose.
- Fixed protection grill.
- Hydraulic flexible lines.

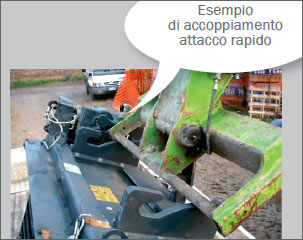

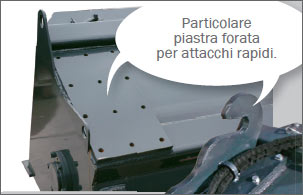

- Bolt-on quick hitch adapter.
- Discharge with 360° rotating rigid pipe.

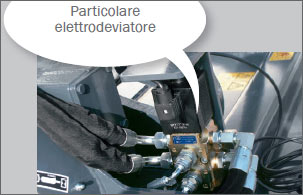

- Hydraulically openable protection grill with electric safety device.
- Reel kit with bracket and outlet for telescopic booms.
- Biflux paddles.

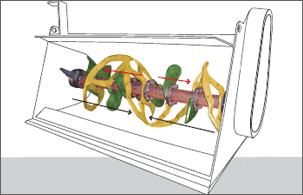

BIFLUX SYSTEM (on request)
This innovative system, which is highly indicated for foundation and medium-hard mixture, allows you to create a double flow of material inside the bucket, thus getting a better mixing of the product and a faster preparation of the slurry.
