Edilzeta Mixing Bucket
in Hardox - BE PR 800
Edilzeta mixing buckets can be attached to a variety of road works and construction machinery in order to load, mix and unload concrete anywhere in a short time and in any quantity needed. These buckets have been designed to facilitate maintenance and reduce downtime, as this is economically damaging for companies operating in construction. The buckets can be disassembled easily and every part can be adjusted thanks to the easy access.
SPECIFICATIONS
Transmission
Hydrostatic + 2 Final Drive + Chain
Working Width
1800 mm
Overall Width
2000 mm
Concrete Yield Capacity
700 l.
Nominal Capacity
800 l.
Total Empty Mass*
800 kg
Max. Load
2480 kg
Minimum Oil Flow
100 l./min.
* Empty mass: machine without attachments.
TRANSMISSION
Edilzeta mixing buckets are characterized by the use of double reduction sets. The first system is based on oil bath reducers and the second is a chain with rollers, thus allowing hydraulic motors to operate in a range of rpm as close to the maximum efficiency as possible, not needing to use high displacement engines and so reducing machine's pump strain.
STANDARD EQUIPMENT
- Discharge with flexible rubber hose.
- Fixed protection grill.
- Hydraulic flexible lines.
OPTIONAL ACCESSORIES

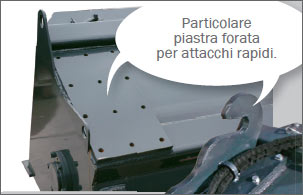

- Bolt-on quick hitch adapter.
- Discharge with 360° rotating rigid pipe.

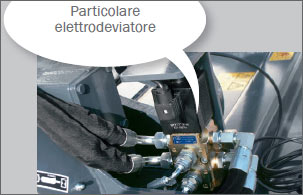

- Hydraulically openable protection grill with electric safety device.
- Reel kit with bracket and outlet for telescopic booms.
- Biflux paddles.

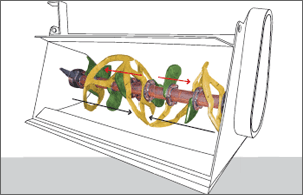

BIFLUX SYSTEM (on request)
This innovative system, which is highly indicated for foundation and medium-hard mixture, allows you to create a double flow of material inside the bucket, thus getting a better mixing of the product and a faster preparation of the slurry.
BIFLUX SYSTEM (on request)
