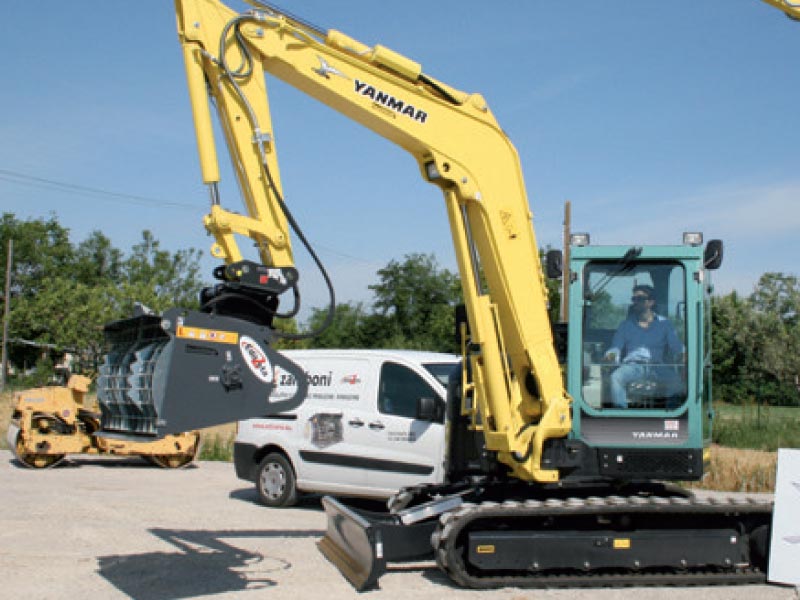

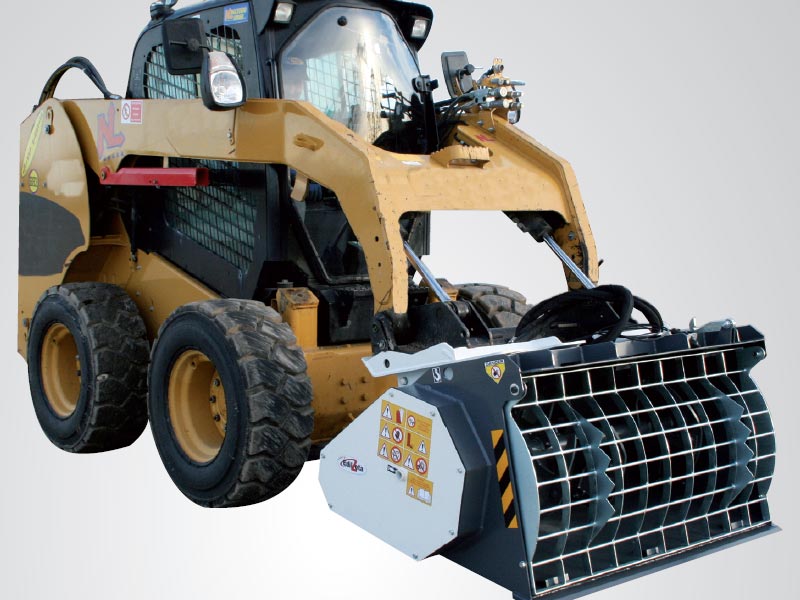

Edilzeta Mixing Bucket - STD 200 NE
Edilzeta mixing buckets can be attached to a variety of road works and construction machinery in order to load. These buckets have been designed to facilitate maintenance and reduce downtime, as this is economically damaging for companies operating in construction. The buckets can be disassembled easily and every part can be adjusted thanks to the easy access.
SPECIFICATIONS
Transmission
Hydrostatic + Chain
Working Width
1100 mm
Overall Width
1250 mm
Concrete Yield Capacity
200 lt.
Nominal Capacity
350 lt.
Total Empty Mass*
290 kg
Max. Load
950 kg
Minimum Oil Flow
45 lt./min.
* Empty mass: machine without attachments.
TRANSMISSION
The mixing shaft is highly resistant to torsion and to flexion due to its large diameter. This provides great benefits such as non-permanent deformation. The side brackets are equipped with large-scale oscillating and greased under pressure bearings, so that the slurry can never penetrate the brackets. In order to do so, the brackets are protected by two polyurethane-made rings to avoid wear and by a double lip shaft seal, so that both sides, that of the mixing and that of the driving ring, are well-protected. This significantly reduces maintenance costs, as greasing is no longer needed every time you use the machine, but only every 40-50 hours of work. The drive wheel is fitted to the mixing shaft by a DIN 5482 type splined coupling.
Edilzeta Mixing Bucket - STD 200 NE
STANDARD EQUIPMENT
- Discharge by flexible rubber hose.
- Fixed protection grill.
- Hydraulic flexible lines.
OPTIONAL ACCESSORIES
- Bolt-on quick hitch adapter.
- Side discharge.
- Hydraulically openable protection grill with electric safety device.
- Remote control kit to open the hydraulic couplings exhaust nozzle.

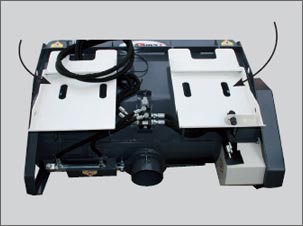

BOLT-ON COUPLING
The couplings are bolted to the equipment, not welded, thus allowing the bucket to be attached to any machine, being this system very appreciated by renters, as it allows the use of a single bucket for different machines.
BOLT-ON COUPLING
Edilzeta Mixing Bucket - STD 200 NE
Detail of Edilzeta Mixing Bucket - STD 200 NE

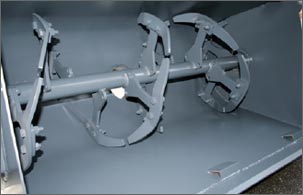

Screw with adjustable scrapers.
Detail of Edilzeta Mixing Bucket - STD 200 NE

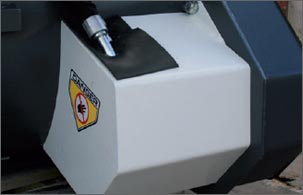

Elettro switch series.
Detail of Edilzeta Mixing Bucket - STD 200 NE

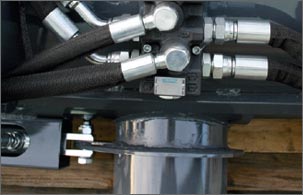

Positioning engine. The engine is located at the bottom of the bucket.
Detail of Edilzeta Mixing Bucket - STD 200 NE

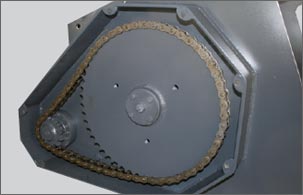

Transmission chain.
